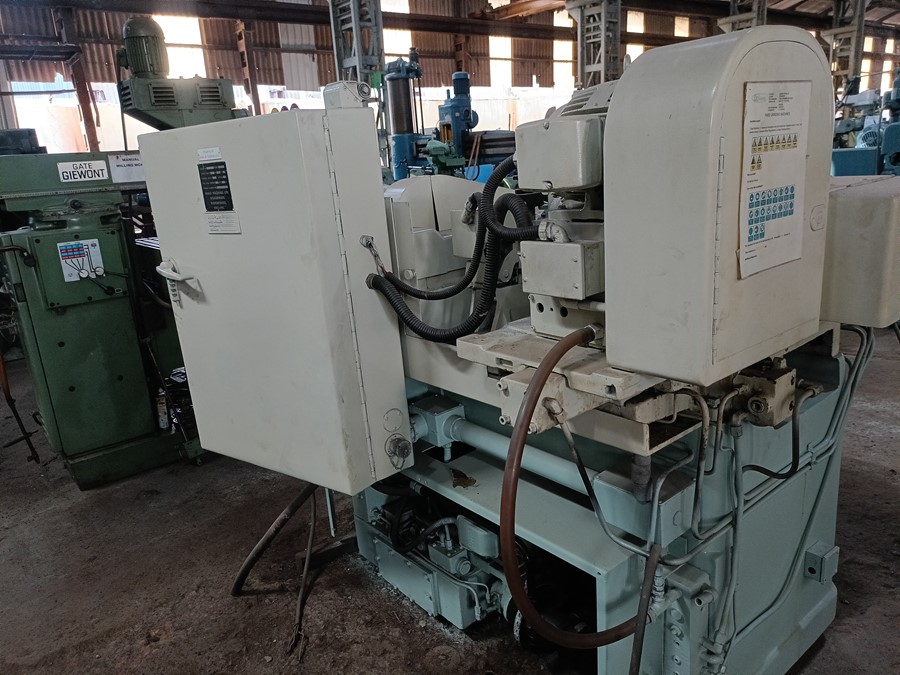

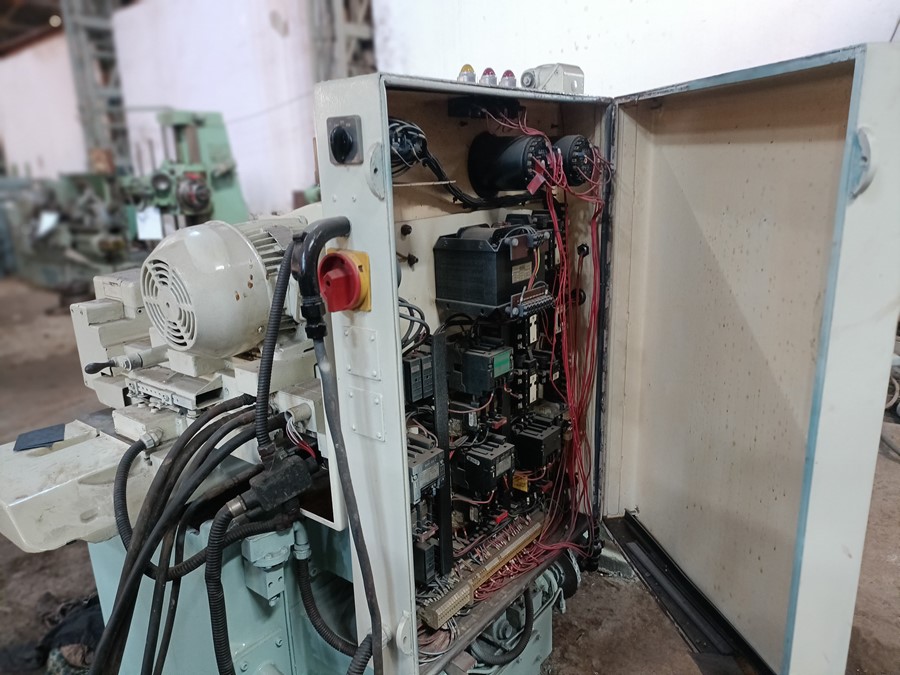

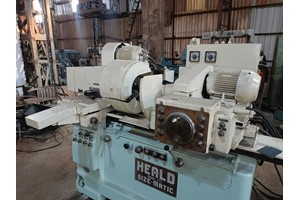

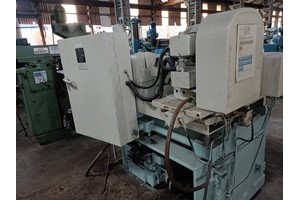

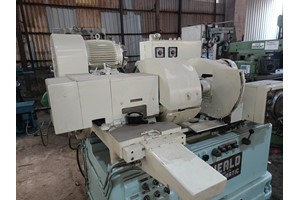

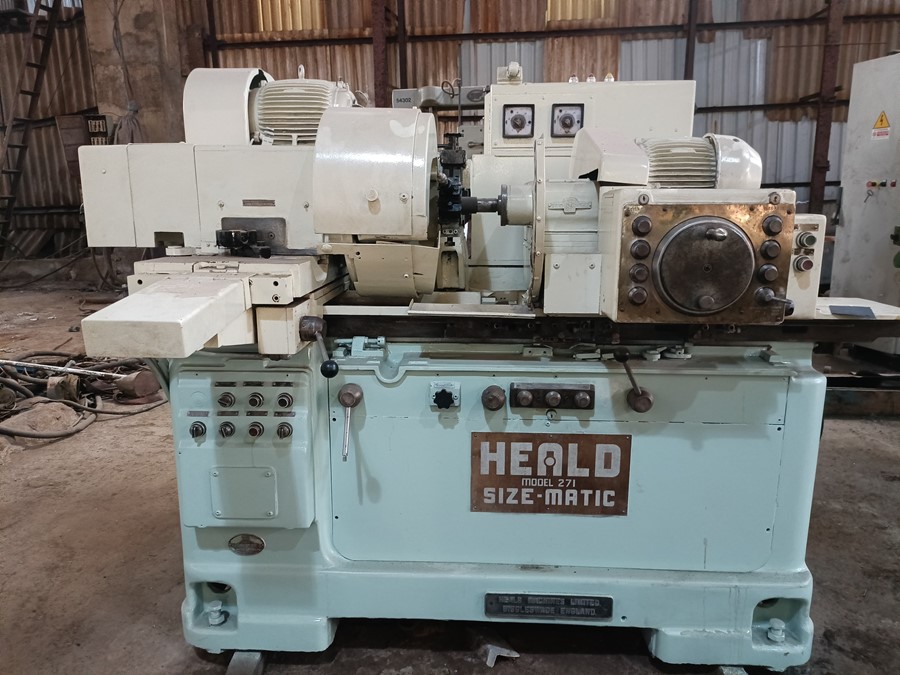

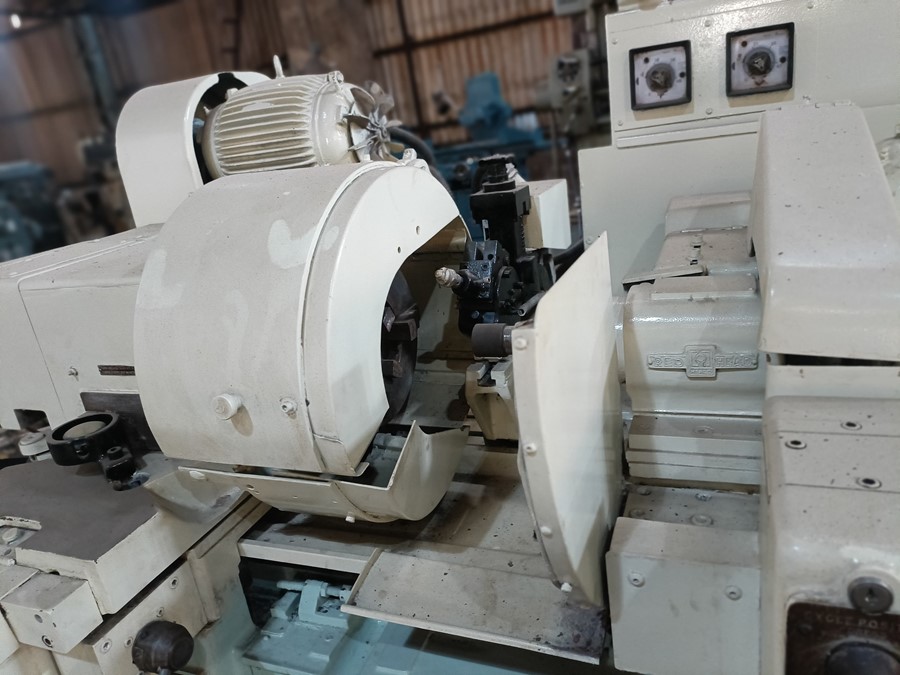

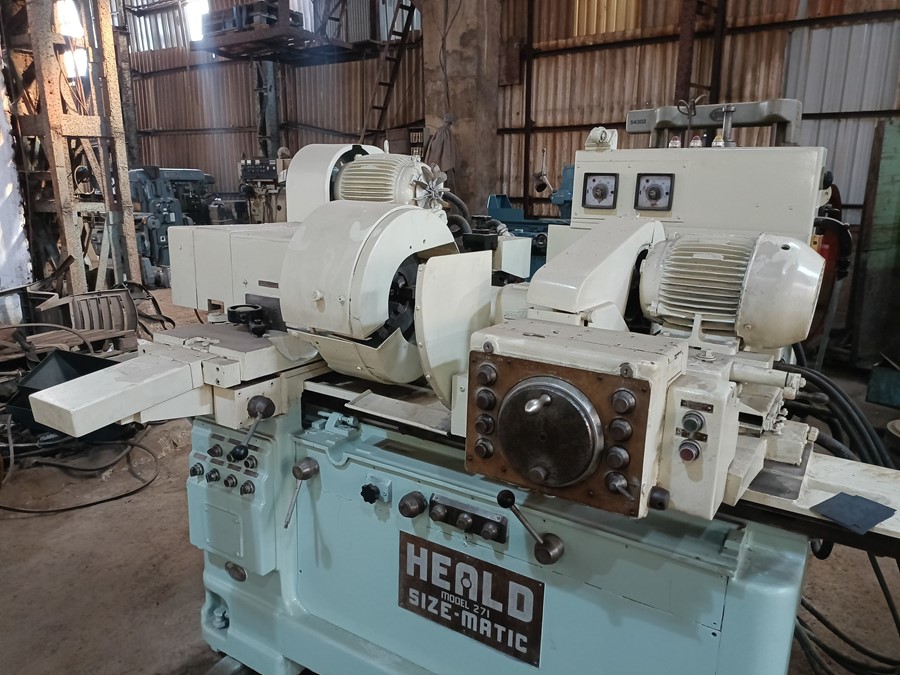

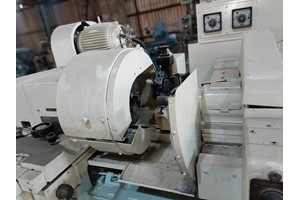

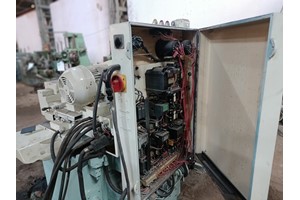

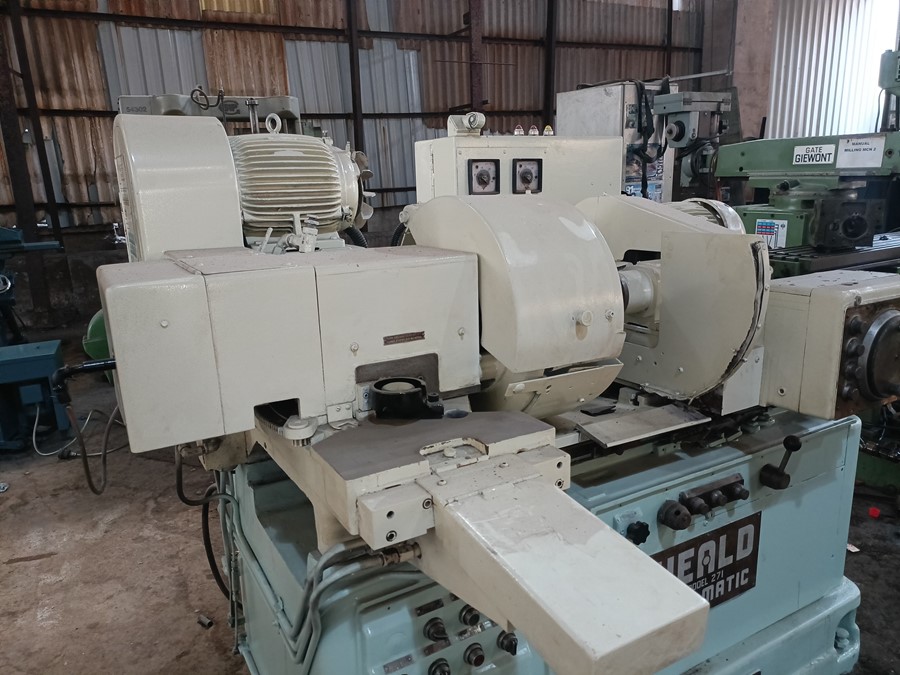

HEALD
Machine Type: Internal Grinding
Model: 271
Location: Navi Mumbai
Technical Specification:
Swing OverTable, Straight Work: 550mm
Swing Inside Standard Guard: 450mm
Maximum Bore Length: 200mm
Maximum Bore Diameter Ground: 9-3/4"
Minimum Bore Diameter Ground: 1/8"
Workhead Speeds, Range, RPM: 100 to 400
Grinding Table Speeds, Range, FPM: 0 to 20
Table Speed, Rapid Traverse: 35 FPM
Diameter of Workhead Spindle Flange: 9-5/8"
Approximate Dimensions: 91" x 74"
Approximate Height: 74"
Approximate Weight: 8,000 LBS
